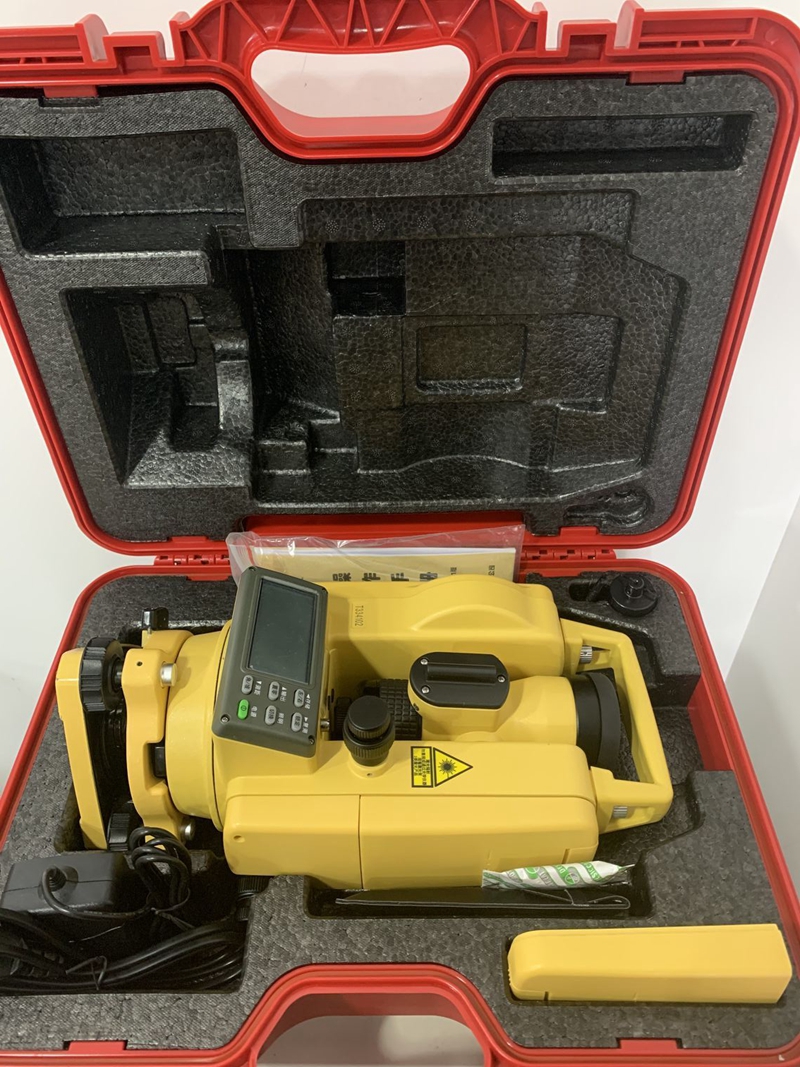

    2" Accuracy Digital Laser Theodolite DT-02L for construction,SOUTH Brand

    Ask Lasest Price
    Brand Name : SOUTH
    Model Number : DT-02L
    Certification : CE CERTIFICATE
    Price : USD
    Payment Terms : L/C, T/T
    Supply Ability : 300pcs per year
    Delivery Time : 15 working days
    • Product Details
    • Company Profile

    2" Accuracy Digital Laser Theodolite DT-02L for construction,SOUTH Brand

    DT-02/DT-02L 2" Accuracy Digital Laser Theodolite for constrction


    Specifications

    DT-02/DT-02LDT-05/DT-05L
    TELESCOPE
    ImageErect
    Magnification30X
    Effective aperture45mm
    Resolving power3"
    Field of view1 30'
    Minimum focusing distance1.4m
    Stadia ratio100
    Stadia constant0
    Tube length157mm
    ANGLE MEASUREMENT
    Reading systemAbsolute Encoding
    Diameter of circle(VHz)79mm
    Minimum reading1"/ 5"(Selectable)
    Accuracy2 "5 "
    Horizontal angleDualDual
    Vertical angleDualDual
    DISPLAY
    (LCD)Display type2 sides
    LASER POINTER
    Laser rangebe seen up to 100 meters away
    MEMORY
    Internal memorySpace for 256 pairs of H. & V. angle
    LEVEL SENSITIVITY
    Plate level30"/2mm(30" per 2mm)
    Circular level10'/2mm (10' per 2mm)
    AUTO VERTICAL COMPENSATOR
    SystemLiquid-electric detection
    Working range±3'
    Accuracy1"
    OPTICAL PLUMMET TELESCOPE
    ImageErect
    Magnification3X
    Focusing range0.5m ~ ∞
    Field of view5°
    PHYSICAL CHARACTERISTICS
    Operating temperature-20oC ~ +45oC
    Internal power supplyRechargeable Ni-H battery/ AA battery
    Voltage6 VDC
    Operating time10 hours
    DimensionL145mm x H318mm x W179mm
    Weight

    5.2 kg
